MyDetector3D Training and Evaluation

Trained Models

Waymo Dataset Models (Waymo132/train0to9)

These models were trained on the Waymo dataset (Waymo132/train0to9) in HPC2. The model save path is /data/cmpe249-fa22/Mymodels/waymo_models/:

  • MyVoxelNext:

    • Config: mydetector3d/tools/cfgs/waymo_models/myvoxelnext.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/myvoxelnext/0427b/ckpt/

  • MyVoxelNext with IoU Branch:

    • Config: mydetector3d/tools/cfgs/waymo_models/myvoxelnext_ioubranch.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/myvoxelnext_ioubranch/0429/ckpt/

  • MySecond:

    • Config: mydetector3d/tools/cfgs/waymo_models/mysecond.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/mysecond/0429/ckpt/checkpoint_epoch_128.pth

    • Evaluation results: /data/cmpe249-fa22/Mymodels/eval/waymo_models_mysecond_epoch128

  • My3DModel:

    • Config: mydetector3d/tools/cfgs/waymo_models/my3dmodel.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0507/ckpt/checkpoint_epoch_128.pth

    • Evaluation results: /data/cmpe249-fa22/Mymodels/eval/waymo_models_my3dmodel_epoch128

Complete Waymo Dataset Models (Waymo132/trainall)

These models were trained on the complete Waymo dataset (Waymo132/trainall) in HPC2:

My3DModel (Epoch 256)

  • Config: mydetector3d/tools/cfgs/waymo_models/my3dmodel.yaml

  • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0508/ckpt/checkpoint_epoch_256.pth

  • Training: Continued from epochs 129-256 based on checkpoint /data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0507/ckpt/checkpoint_epoch_128.pth

  • Evaluation results: /data/cmpe249-fa22/Mymodels/eval/waymo_models_my3dmodel_epoch256/txtresults

Performance Results:

Car AP@0.70, 0.70, 0.70:
 bbox AP:91.7851, 91.7851, 91.7851
 bev  AP:68.3034, 68.3034, 68.3034
 3d   AP:49.0174, 49.0174, 49.0174
 aos  AP:50.76, 50.76, 50.76
Pedestrian AP@0.50, 0.50, 0.50:
 bbox AP:89.7635, 89.7635, 89.7635
 bev  AP:55.1775, 55.1775, 55.1775
 3d   AP:50.3953, 50.3953, 50.3953
 aos  AP:45.93, 45.93, 45.93
Cyclist AP@0.50, 0.50, 0.50:
 bbox AP:64.8413, 64.8413, 64.8413
 bev  AP:51.8248, 51.8248, 51.8248
 3d   AP:48.8936, 48.8936, 48.8936
 aos  AP:51.74, 51.74, 51.74

MyVoxelNext (Epoch 128)

  • Config: mydetector3d/tools/cfgs/waymo_models/myvoxelnext.yaml

  • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/myvoxelnext/0509/ckpt/checkpoint_epoch_128.pth

  • Training: Trained from scratch (epoch 0)

  • Evaluation results: /data/cmpe249-fa22/Mymodels/eval/waymo_models_myvoxelnext_epoch128/txtresults

Performance Results:

Car AP@0.70, 0.70, 0.70:
bbox AP:96.9390, 96.9390, 96.9390
bev  AP:71.0638, 71.0638, 71.0638
3d   AP:57.9034, 57.9034, 57.9034
aos  AP:57.86, 57.86, 57.86
Pedestrian AP@0.50, 0.50, 0.50:
bbox AP:93.3127, 93.3127, 93.3127
bev  AP:67.9591, 67.9591, 67.9591
3d   AP:61.6305, 61.6305, 61.6305
aos  AP:52.90, 52.90, 52.90
Cyclist AP@0.50, 0.50, 0.50:
bbox AP:80.0512, 80.0512, 80.0512
bev  AP:70.7396, 70.7396, 70.7396
3d   AP:69.7192, 69.7192, 69.7192
aos  AP:67.86, 67.86, 67.86

MySecond (Epoch 256)

  • Config: mydetector3d/tools/cfgs/waymo_models/mysecond.yaml

  • Checkpoint: /data/cmpe249-fa22/Mymodels/waymo_models/mysecond/0510/ckpt/checkpoint_epoch_256.pth

  • Training: Continued from previous mysecond_epoch_128

  • Evaluation results: /data/cmpe249-fa22/Mymodels/eval/waymo_models_mysecond_epoch256/txtresults

Performance Results:

Car AP@0.70, 0.70, 0.70:
bbox AP:92.4510, 92.4510, 92.4510
bev  AP:67.9950, 67.9950, 67.9950
3d   AP:50.5870, 50.5870, 50.5870
aos  AP:51.00, 51.00, 51.00
Pedestrian AP@0.50, 0.50, 0.50:
bbox AP:91.2207, 91.2207, 91.2207
bev  AP:56.9275, 56.9275, 56.9275
3d   AP:49.9933, 49.9933, 49.9933
aos  AP:47.57, 47.57, 47.57
Cyclist AP@0.50, 0.50, 0.50:
bbox AP:65.6921, 65.6921, 65.6921
bev  AP:52.4134, 52.4134, 52.4134
3d   AP:49.4230, 49.4230, 49.4230
aos  AP:52.40, 52.40, 52.40

WaymoKitti Dataset Models

These models were trained on our converted WaymoKitti dataset in HPC2. The model save path is /data/cmpe249-fa22/Mymodels/waymokitti_models/:

  • PointPillar:

    • Config: mydetector3d/tools/cfgs/waymokitti_models/pointpillar.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymokitti_models/pointpillar/0504/ckpt/checkpoint_epoch_128.pth

  • Second:

    • Config: mydetector3d/tools/cfgs/waymokitti_models/second.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymokitti_models/second/0502/ckpt/checkpoint_epoch_128.pth

  • VoxelNext 3-Class:

    • Config: mydetector3d/tools/cfgs/waymokitti_models/voxelnext_3class.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymokitti_models/voxelnext_3class/0430/ckpt/checkpoint_epoch_72.pth

  • My3DModel:

    • Config: mydetector3d/tools/cfgs/waymokitti_models/my3dmodel.yaml

    • Checkpoint: /data/cmpe249-fa22/Mymodels/waymokitti_models/my3dmodel/0505/ckpt/latest_model.pth

Model Evaluation

Evaluation Results Structure

Evaluation results from myevaluatev2.py are stored in /data/cmpe249-fa22/Mymodels/eval/ with the naming convention: datasetname + modelname + epochnumber.

Each evaluation folder (e.g., /data/cmpe249-fa22/Mymodels/eval/waymokitti_dataset_mysecond_epoch128/) contains:

Detection Results (saved by detection function):

  • result.pkl: Detection results in KITTI format (det_annos array) used for evaluation

  • ret_dicts.pkl: Detection results, ground truth, and inference time for each frame

  • txtresults: Detection results in KITTI format with 2D bounding boxes converted from 3D bounding boxes

  • {dataset}_{model}_{epoch}_frame_{n}.pkl: Complete frame data with original LiDAR points and ground truth for visualization with visonebatch.py

Evaluation Results (saved by runevaluation function):

  • result_str.txt: KITTI evaluation results

  • result_dict.pkl: Recall-related evaluation data

Evaluation Process

The runevaluation function processes detection results as follows:

  1. Input Processing: Takes det_annos from detection results

  2. Data Extraction: Retrieves info from dataset.infos, where each annotation dictionary contains:

    • point_cloud, frame_id, metadata, image, annos, pose

    • num_points_of_each_lidar (5 LiDAR sensors)

  3. Ground Truth Processing: The annos key contains gt_boxes_lidar (63,9), dimensions, location, heading_angles, etc.

  4. Format Conversion: Annotations are converted to eval_gt_annos using:

eval_det_annos = copy.deepcopy(det_annos)  # contains 'boxes_lidar' (N,7) key
eval_gt_annos = [copy.deepcopy(info['annos']) for info in datainfo]  # contains 'gt_boxes_lidar' (N,7) key
transform_annotations_to_kitti_format(eval_det_annos, map_name_to_kitti=map_name_to_kitti)
transform_annotations_to_kitti_format(
    eval_gt_annos, map_name_to_kitti=map_name_to_kitti, info_with_fakelidar=False)
result_str, result_dict = kitti_eval.get_official_eval_result(eval_gt_annos, eval_det_annos, class_names)

Visualization Example

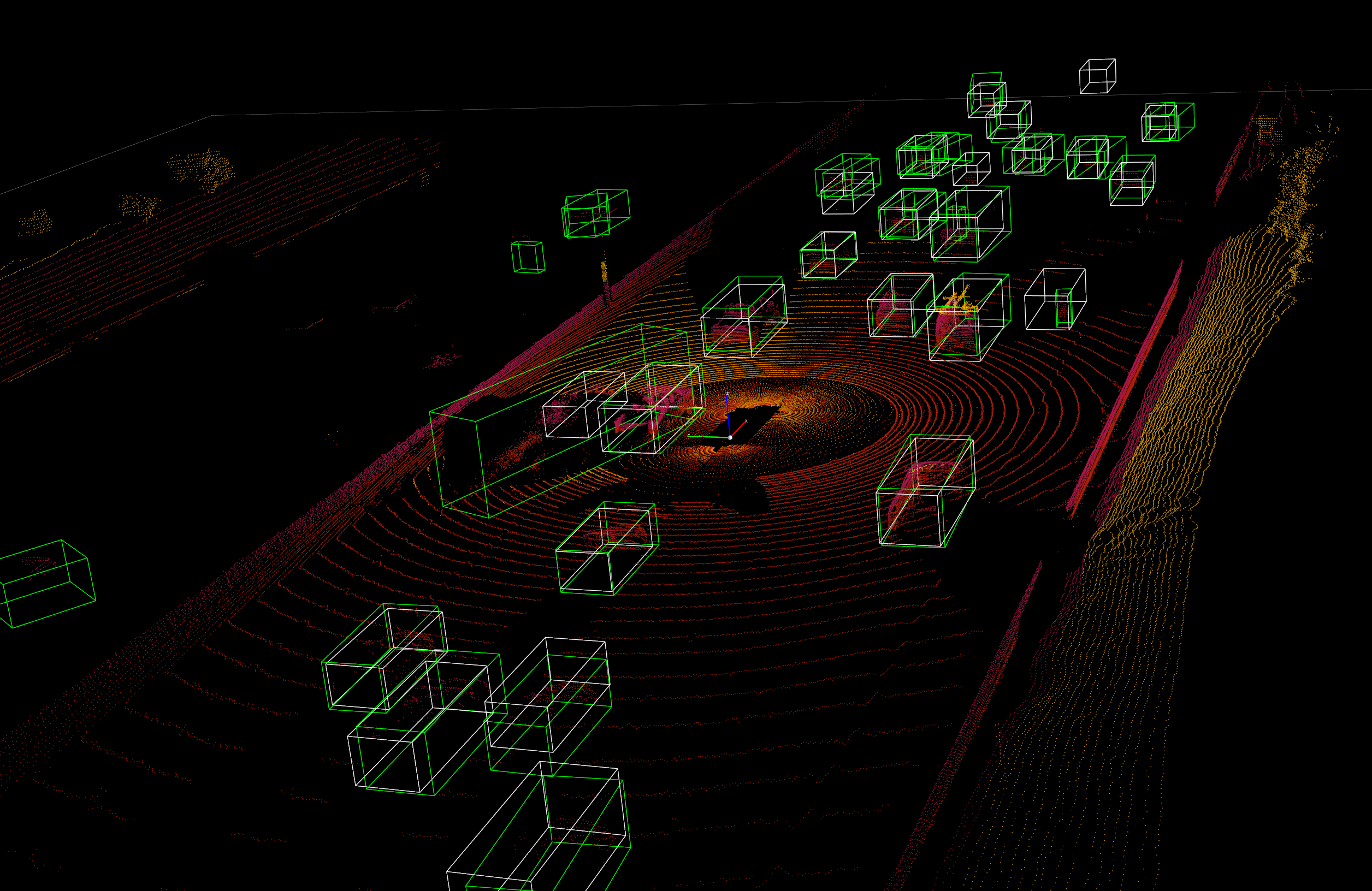

3D Detection Results 3D detection results using WaymoKitti dataset and SECOND model

KITTI Dataset Processing

Dataset Info Generation

Run create_kitti_infos in mydetector3d/datasets/kitti/kitti_dataset.py to generate:

  • kitti_infos_train.pkl

  • kitti_infos_val.pkl

  • kitti_infos_trainval.pkl

  • kitti_infos_test.pkl

The process calls dataset.get_infos to generate each info file, processing files in sample_id_list via process_single_scene:

pc_info = {'num_features': 4, 'lidar_idx': sample_idx}
info['point_cloud'] = pc_info
image_info = {'image_idx': sample_idx, 'image_shape': self.get_image_shape(sample_idx)}
info['image'] = image_info
info['calib'] = calib_info
info['annos'] = annotations

Label Processing

Labels are extracted using self.get_label(sample_idx), which returns:

return object3d_kitti.get_objects_from_label(label_file)
    # |-------[Object3d(line) for line in lines]
    # |-----in mydetector3d/utils/object3d_kitti.py

Annotation Structure

Annotations are created from the object list, with each dictionary containing:

  • name: Class name string from obj.cls_type

  • truncated: Float (0=non-truncated, 1=truncated)

  • occluded: Integer (0=fully visible, 1,2,3=unknown)

  • alpha: Observation angle (-π to π)

    • Considers vector from camera center to object center

    • Zero when object is along camera Z-axis (front)

  • bbox: 2D bounding box from obj.box2d (left, top, right, bottom in image pixels)

  • dimensions: 3D object size in meters [obj.l, obj.h, obj.w]

    • obj.l: length (label[10])

    • obj.h: height (label[9])

    • obj.w: width (label[8])

  • location: Object center obj.loc (label[11-13]) in camera coordinates

  • rotation_y: Rotation around Y-axis (label[14]) in camera coordinates [-π…π]

  • difficulty: Calculated by get_kitti_obj_level based on 2D box height (>40 pixels = Easy)

Coordinate Transformation

Annotations are processed to convert from camera coordinates to LiDAR coordinates:

loc_lidar = calib.rect_to_lidar(loc)
l, h, w = dims[:, 0:1], dims[:, 1:2], dims[:, 2:3]
loc_lidar[:, 2] += h[:, 0] / 2
gt_boxes_lidar = np.concatenate([loc_lidar, l, w, h, -(np.pi / 2 + rots[..., np.newaxis])], axis=1)
annotations['gt_boxes_lidar'] = gt_boxes_lidar

The rotation conversion -(π/2 + rots) transforms from KITTI camera rotation (camera x-axis, clockwise positive) to PCDet LiDAR rotation (LiDAR X-axis, clockwise negative).

WaymoKitti Dataset Processing

Dataset Location and Structure

The WaymoKitti dataset is stored at /data/cmpe249-fa22/WaymoKitti/4c_train5678:

(mycondapy39) [010796032@coe-hpc2 cmpe249-fa22]$ ls /data/cmpe249-fa22/WaymoKitti/4c_train5678/
ImageSets   training                 waymo_gt_database      waymo_infos_trainval.pkl
ImageSets2  waymo_dbinfos_train.pkl  waymo_infos_train.pkl  waymo_infos_val.pkl

Conversion Process

The Waymo dataset was converted to KITTI format using Waymo2KittiAsync.py from the WaymoObjectDetection repository:

[DatasetTools]$ python Waymo2KittiAsync.py
[DatasetTools]$ python mycreatewaymoinfo.py --createsplitfile_only
[DatasetTools]$ python mycreatewaymoinfo.py --createinfo_only

Ground truth database generation was performed using mymmdetection3d.

Info File Generation

The createinfo_only function calls get_waymo_image_info from myWaymoinfo_utils.py, creating info files with the following KITTI-like format:

{
    # [optional] points: [N, 3+] point cloud
    # [optional, for kitti] image: {
    #     image_idx: ...
    #     image_path: ...
    #     image_shape: ...
    # }
    point_cloud: {
        num_features: 4,  # or 6
        velodyne_path: ...
    },
    # [optional, for kitti] calib: {
    #     R0_rect: ...
    #     Tr_velo_to_cam0: ...
    #     P0: ...
    # }
    annos: {
        location: [num_gt, 3],      # array
        dimensions: [num_gt, 3],    # array
        rotation_y: [num_gt],       # angle array
        name: [num_gt],             # ground truth name array
        # [optional] difficulty: kitti difficulty
        # [optional] group_ids: used for multi-part object
    }
}

A new dataset file mydetector3d/datasets/kitti/waymokitti_dataset.py was created based on kitti_dataset.py.

Waymo Dataset Processing

Dataset Preparation

The mydetector3d/datasets/waymo/waymo_dataset.py file provides different preprocessing functions via the --func parameter:

Available Functions:

  • mycreateImageSet: Creates the ImageSets folder with train/val split files under /data/cmpe249-fa22/Waymo132/ImageSets/

  • mygeninfo: Creates info files based on provided folder list with processed_data_tag='train0to9'

  • mygengtdb: Creates ground truth database via create_waymo_gt_database function

Info Generation Process (mygeninfo)

  1. Sequence Processing: Calls waymo_utils.process_single_sequence for each TFRecord sequence file

  2. Info Storage: All returned info dictionaries are saved in train0to9_infos_train.pkl under /data/cmpe249-fa22/Waymo132/

  3. Folder Creation: Creates one folder per sequence under /data/cmpe249-fa22/Waymo132/train0to9

  4. Annotation Generation: Includes annotations via generate_labels

Label Generation (generate_labels)

Located in mydetector3d/datasets/waymo/waymo_utils.py:

  • Source: Uses waymo frame.laser_labels for box annotations

  • Location: loc = [box.center_x, box.center_y, box.center_z]

  • Dimensions: dimensions.append([box.length, box.width, box.height]) (matches OpenPCDet unified coordinates)

  • Additional Fields: Contains heading_angles, speed_global, accel_global (not in KITTI)

  • Missing Fields: KITTI’s alpha and rotation_y are not included

Ground Truth Box Calculation:

if annotations['name'].__len__() > 0:
    # get speed
    gt_boxes_lidar = np.concatenate([
        annotations['location'],
        annotations['dimensions'],
        annotations['heading_angles'][..., np.newaxis],
        speed
    ], axis=1)
else:
    gt_boxes_lidar = np.zeros((0, 9))
annotations['gt_boxes_lidar'] = gt_boxes_lidar

Point Cloud Storage: save_lidar_points saves each frame’s LiDAR data as individual .npy files (frame index as filename) under the sequence folder, containing 3D points in vehicle frame.

Ground Truth Database Generation (mygengtdb)

The create_waymo_gt_database function:

  1. Dataset Processing: Calls dataset.create_groundtruth_database for ‘train’ split

  2. File Generation: Creates:

    • %s_gt_database_%s_sampled_%d_global.npy (stacked_gt_points)

    • %s_waymo_dbinfos_%s_sampled_%d.pkl (array of dbinfo dictionaries)

  3. Database Info Structure: Each dbinfo contains:

db_info = {
    'name': names[i],
    'path': db_path,
    'sequence_name': sequence_name,
    'sample_idx': sample_idx,
    'gt_idx': i,
    'box3d_lidar': gt_boxes[i],
    'num_points_in_gt': gt_points.shape[0],
    'difficulty': difficulty[i]
}

  1. Folder Creation: Creates %s_gt_database_%s_sampled_%d folder under root directory

Complete Dataset Preparation Commands

(mycondapy39) [010796032@cs001 waymo]$ python waymo_dataset.py --func 'mycreateImageSet'
Total files: 648
Train size: (518, 1)
Val size: (130, 1)
Done in /data/cmpe249-fa22/Waymo132/ImageSets/trainval.txt
Done in /data/cmpe249-fa22/Waymo132/ImageSets/train.txt
Done in /data/cmpe249-fa22/Waymo132/ImageSets/val.txt

(mycondapy39) [010796032@cs001 waymo]$ python waymo_dataset.py --func 'mygeninfo'
totoal number of files: 648

(mycondapy39) [010796032@cs001 3DDepth]$ python mydetector3d/datasets/waymo/waymo_dataset.py --func 'mygengtdb'
Total samples for Waymo dataset: 6485
---------------Start create groundtruth database for data augmentation---------------
2023-05-08 18:06:49,870   INFO  Loading Waymo dataset
2023-05-08 18:07:23,908   INFO  Total skipped info 0
2023-05-08 18:07:23,908   INFO  Total samples for Waymo dataset: 25867
Database Vehicle: 244715
Database Pedestrian: 231457
Database Cyclist: 11475
---------------Data preparation Done---------------

Dataset Initialization During Training

DatasetTemplate Initialization

The DatasetTemplate class (in dataset.py) sets up three processors from the DATA_PROCESSOR section of mydetector3d/tools/cfgs/dataset_configs/mywaymo_dataset.yaml:

  1. Point Feature Encoder: Based on dataset_cfg.POINT_FEATURE_ENCODING

  2. Data Augmentor: Based on dataset_cfg.DATA_AUGMENTOR

  3. Data Processor: Based on dataset_cfg.DATA_PROCESSOR

Grid and Voxel Configuration:

self.grid_size = self.data_processor.grid_size    # [1504, 1504, 40] = POINT_CLOUD_RANGE/voxel_size
self.voxel_size = self.data_processor.voxel_size  # [0.1, 0.1, 0.15] meters

WaymoDataset Initialization

The WaymoDataset class in mydetector3d/datasets/waymo/waymo_dataset.py reads info files via include_waymo_data:

Data Loading Process: Iterates through sample_sequence_list (all TFRecord files), loads pickle files as infos from each sequence folder, and combines them into the infos[] array.

Data Loading (__getitem__)

Point Cloud Loading:

pc_info = info['point_cloud']
sequence_name = pc_info['lidar_sequence']
sample_idx = pc_info['sample_idx']
points = self.get_lidar(sequence_name, sample_idx)  # load npy file, limit intensity from -1 to 1
input_dict.update({
    'points': points,
    'frame_id': info['frame_id'],
})

Annotation Processing:

gt_boxes_lidar = annos['gt_boxes_lidar']  # [N,9]
gt_boxes_lidar = gt_boxes_lidar[:, 0:7]   # [54,8] exclude speed information
# FILTER_EMPTY_BOXES_FOR_TRAIN
input_dict.update({
    'gt_names': annos['name'],                                    # class string names [54,]
    'gt_boxes': gt_boxes_lidar,                                  # [54,7]
    'num_points_in_gt': annos.get('num_points_in_gt', None)     # [54,]
})

Data Preparation Pipeline:

data_dict = self.prepare_data(data_dict=input_dict)  # DatasetTemplate
# 1. data_dict = self.data_augmentor.forward          # perform data augmentation
# 2. data_dict['gt_boxes'] = gt_boxes                 # Filter gt_boxes, convert gt_names to index and add to gt_boxes last column [Ngt,7]->[Ngt,8]
# 3. data_dict = self.point_feature_encoder.forward(data_dict)  # feature encoder for points [N,5], add use_lead_xyz=True
# 4. data_dict = self.data_processor.forward          # preprocessing: remove out-of-range points, shuffle, convert to voxel

Voxelization Process (transform_points_to_voxels in data_processor.py):

voxel_output = self.voxel_generator.generate(points)  # get voxels (64657, 5, 5), coordinates (64657, 3), num_points (64657,)
data_dict['voxels'] = voxels
data_dict['voxel_coords'] = coordinates
data_dict['voxel_num_points'] = num_points

Final Data Dictionary Structure

  • gt_boxes: (16, 16, 8) - batch_size=16, max_boxes=16, box_values=8

  • points: (302730, 5) - 5 features with batch index prepended to 4 point features (xyzr)

  • voxels: (89196, 32, 4) - max_points_per_voxel=32, features=4 (x,y,z,intensity)

  • voxel_coords: (89196, 4) - (batch_index,z,y,x) with batch_index added in dataset.collate_batch

  • voxel_num_points: (89196,) - number of points per voxel

Training Execution

(mycondapy39) [010796032@cs001 3DDepth]$ python mydetector3d/tools/mytrain.py
2023-05-08 19:16:49,940   INFO  cfg_file         mydetector3d/tools/cfgs/waymo_models/my3dmodel.yaml
2023-05-08 19:16:49,940   INFO  batch_size       8
2023-05-08 19:16:49,940   INFO  epochs           256
2023-05-08 19:16:49,940   INFO  workers          4
2023-05-08 19:16:49,940   INFO  extra_tag        0508
2023-05-08 19:16:49,940   INFO  ckpt             /data/cmpe249-fa22/Mymodels/waymo_models/my3dmodel/0507/ckpt/checkpoint_epoch_128.pth
2023-05-08 19:16:49,967   INFO  ----------- Create dataloader & network & optimizer -----------
2023-05-08 19:16:53,197   INFO  Database filter by min points Vehicle: 244715 => 209266
2023-05-08 19:16:53,222   INFO  Database filter by min points Pedestrian: 231457 => 196642
2023-05-08 19:16:53,225   INFO  Database filter by min points Cyclist: 11475 => 10211
2023-05-08 19:16:53,248   INFO  Database filter by difficulty
  num_bev_features features after backbone2d 384
